5 Smaller Underwater Camera Housing Systems to Compare
A smaller housing body can make travel easier, but the camera lens, port and lights determine the finished size. These five options range from a compact TG camera to smaller interchangeable-lens systems. They fit different cameras, so use this list while planning a system rather than shopping for a substitute enclosure for an existing body.
Updated · Manufacturer specifications and published review evidence
How we chose and ordered these picks
The compact-camera option leads, followed by small-system housings and a fixed-lens-port arrangement. No carry-on guarantee is implied.
List position is an editorial recommendation, not a review score. The selection uses the documented features and limitations below. We have not personally tested this equipment. Verified publisher scores, where available, are shown separately and link to their evidence. Our catalogue is still being researched; inclusion does not mean a product has a completed scored review.
The shortlist at a glance
Choose a model to jump to its details. Compare the exact configuration before ordering.

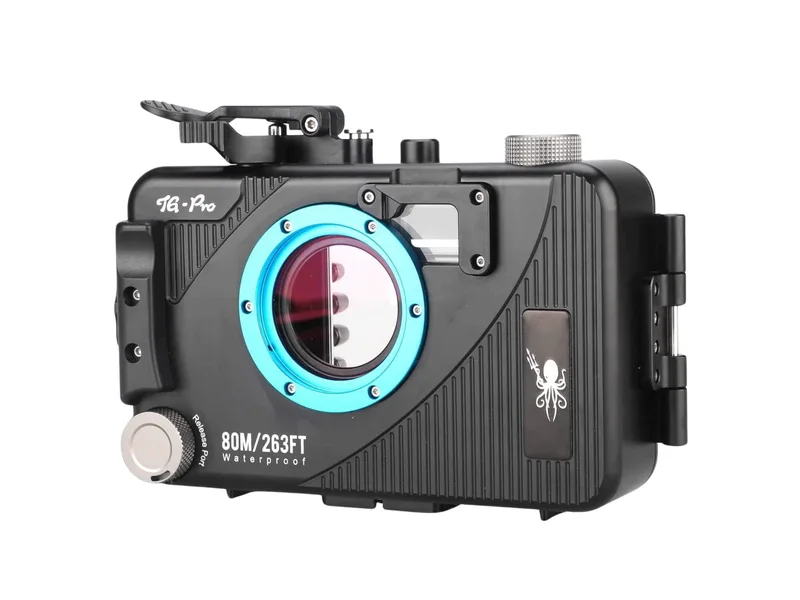

The TG-PRO is an aluminium camera housing sold for Olympus/OM System TG-6 and TG-7 cameras. Its appeal is the built-in electronic vacuum system, access to camera controls and provision for an internal 18650 battery to charge the camera. The 52 mm port thread accepts compatible wet optics; 67 mm lenses require an adapter.
Body
Hard-anodised aluminium
Camera family
TG-6 / TG-7; verify exact fit
Port thread
52 mm; 67 mm with adapter
Vacuum system
Electronic; M16 bulkhead also listed
Depth rating
Conflicting 80 m / 100 m claims
Listed weight
685 g on land
What to check
Kraken’s description says 100 m, while its specification table and housing photograph say 80 m. Treat the depth rating as unresolved and obtain confirmation for the actual housing before purchase. The page also mentions TG-5 compatibility, which should be checked rather than inferred from the TG6/TG7 title.
No verified independent overall score yet. Compare the specifications and limitations above.

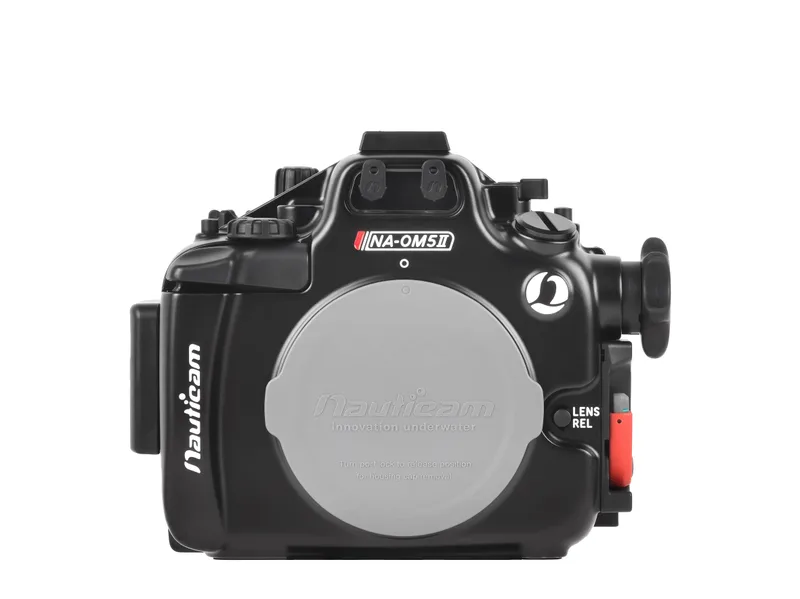

The NA-OM5II is a compact N85 housing for the OM SYSTEM OM-5II. Its 1.3 kg housing weight offers a relatively small starting point for a Micro Four Thirds rig, with the final size determined by the lens port and lighting.
Model
17822
Port system
N85
Manufacturer depth rating
100 m
Dimensions
197 × 154 × 99 mm
Weight in air
1.3 kg
Mini flash trigger
26306, from serial A625591
Vacuum valve
Optional M14 25624
What to check
A tray and handles are optional. The Olympus mini flash trigger requires a specified serial number, while several accessory entries on the manufacturer page are still provisional. Reviews of the older E-M5 II housing do not apply to this model.
No verified independent overall score yet. Compare the specifications and limitations above.

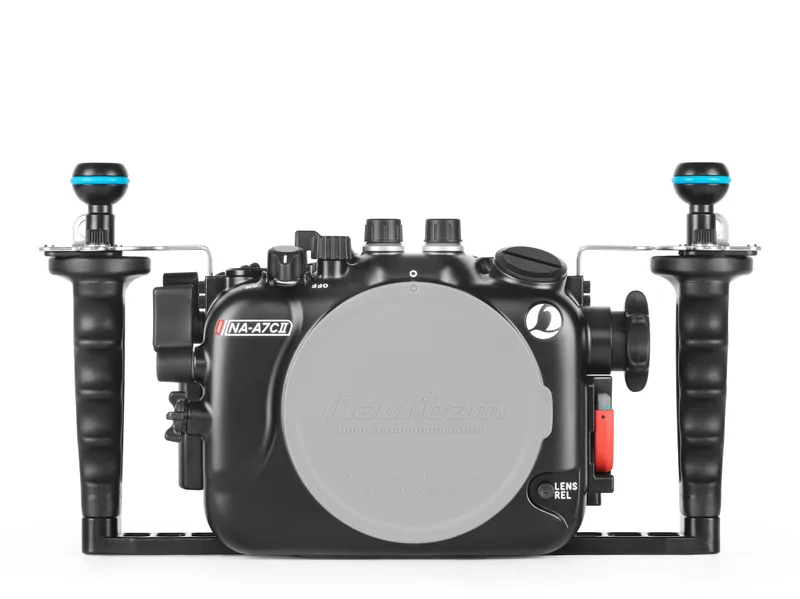

The NA-A7CII/R houses either the Sony A7CII or A7CR in a relatively compact N100 body. At a listed 1.9 kg, it is lighter than several larger Sony Nauticam housings, though a finished underwater setup still needs its lens port and lighting. It is intended for owners who want to keep one of these compact full-frame cameras underwater.
Camera fit
Sony A7CII or A7CR
Depth rating
100 m
Port system
N100
Weight in air
1.9 kg
Dimensions
316 × 173 × 109 mm
Vacuum valve
Optional 25624
Surface USB-PD option
From S/N A599661; extra bulkhead/adaptor required
What to check
An optical LED trigger or electrical bulkhead is optional rather than included. Vacuum monitoring also needs the separate valve to perform a vacuum check. Surface USB-PD bulkhead compatibility applies from serial A599661 onward, with the specified additional parts; confirm the serial of older stock or a used housing. The listed monitor options use HDMI 1.4.
No verified independent overall score yet. Compare the specifications and limitations above.

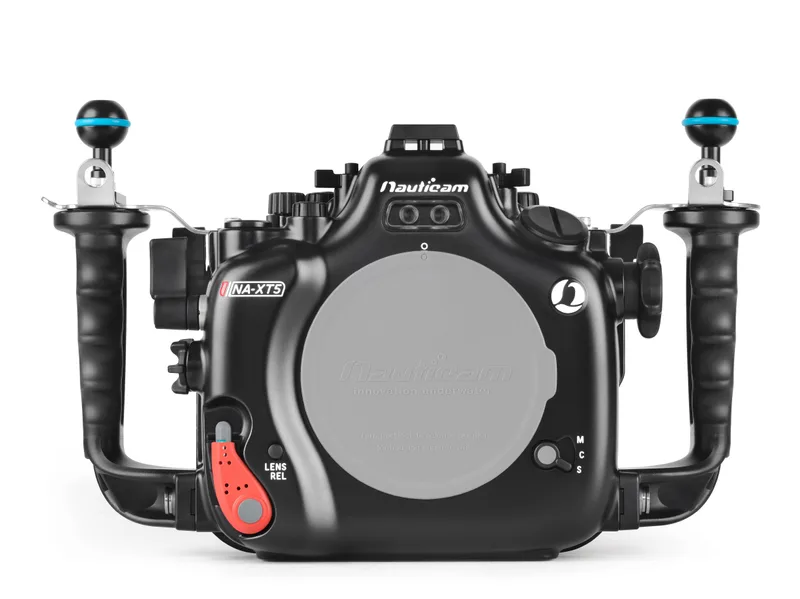

The NA-XT5 is Nauticam’s dedicated Fujifilm X-T5 housing, built around an N100 port mount and a two-handle frame. It suits an X-T5 photographer who wants interchangeable underwater optics and external strobes while retaining that camera system. Leak-monitoring electronics and the grip mounting balls are supplied with the housing.
Camera fit
Fujifilm X-T5
Depth rating
100 m
Port system
N100
Weight in air
2.7 kg
Dimensions
332 × 213 × 121 mm
Vacuum valve
Optional 25624
Optical trigger
Optional 26305
What to check
Ports and gears are separate, and the N100 mount should not be confused with N85 housings used for other smaller cameras. The flash trigger and M14 vacuum valve are optional. Nauticam lists made-to-order availability, so confirm delivery and return conditions. HDMI accessory compatibility includes a serial-dependent note that should be checked against the actual unit before purchasing cables.
No verified independent overall score yet. Compare the specifications and limitations above.

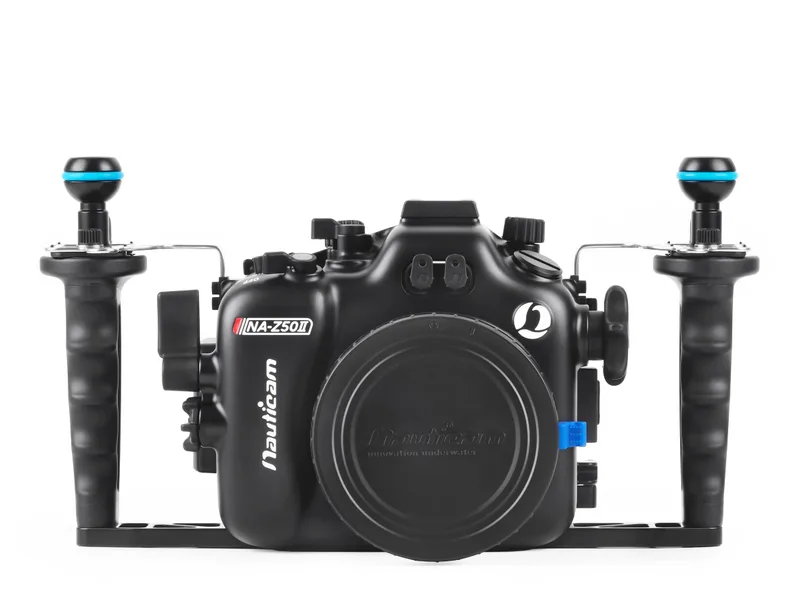

The NA-Z50II takes a deliberately restricted approach: its fixed flat port is designed for Nikon’s Z DX 16–50 mm f/3.5–6.3 VR lens. A preinstalled bayonet supports compatible wet optics, giving the travelling photographer options without a conventional interchangeable dry-port system.
Camera
Nikon Z 50 II
Lens
Z DX 16–50 mm f/3.5–6.3 VR only
Port
Fixed flat port with bayonet
Manufacturer depth rating
100 m
Dimensions
290 × 146 × 156 mm
Weight in air
1.95 kg
Vacuum valve
Optional M16 25625
What to check
The fixed port limits lens choice. The camera’s pop-up flash provides optical triggering, and the vacuum valve is extra. A published Z50 II camera test used an Ikelite housing, so it cannot establish a Nauticam housing score.
No verified independent overall score yet. Compare the specifications and limitations above.
Product research checked 2026-10-03. Specifications can change; confirm the exact model and package.
Before you buy
Measure and weigh the complete rig including its port.
Check which controls remain available with the selected camera.
Read lens restrictions carefully on fixed-port housings.
Take two or three suitable models from this list into a comparison, then remove any that fail your fit or compatibility checks. A lower position here can still be the better purchase for your setup. Check the product page for source dates and unresolved details before placing an order.
Are all lenses for the camera supported underwater?
No. Housing and port support is lens-specific. The NA-Z50II entry, for example, uses a restricted fixed-port lens arrangement that must be checked before buying.
